Bottle Cap Colour digital printer
ZFPM-ONEPASS-PG01

Full‑Auto Bottle Cap Colour UV digital printing machine ZFPM-ONEPASS-PG01 ,This automatic full-color UV digital inkjet printer for bottle caps is custom-built for curved surface colour printing on plastic caps, aluminium tamper proof closures and bottle bodies. Fitted with high precision piezoelectric printheads, it supports maximum 1200-DPI high resolution output for variable QR codes, batch serial numbers, anti-counterfeit codes, logos and full-colour graphics. It comes standard with plasma activation pretreatment, instant dry LED-UV cold light curing, OCR visual inspection and automatic defective goods rejection. The RoHS compliant, food safe UV ink features outstanding adhesion and scratch resistant performance, well suited for high speed production lines of food, beverage, cosmetic and pharmaceutical packaging.

获取报价

Detailed Product Specifications：

Product Features:

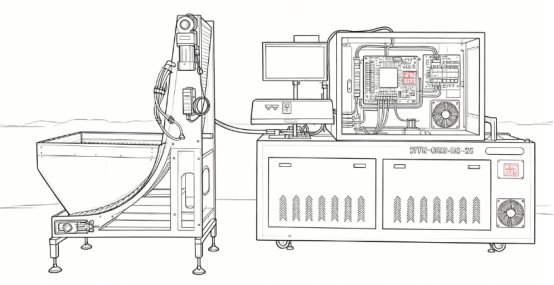

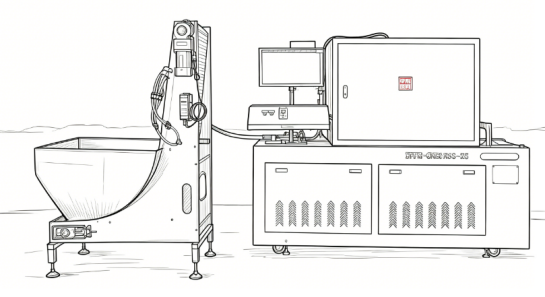

1. Waterfall type cap feeder

Built in inclined vertical lifting belt conveyor and large capacity storage hopper, the slim tall waterfall style cap sorter transports caps upward via baffled belts just like upward flowing waterfall. It sorts caps by the gravity principle: misaligned caps slide back for re-screening while properly-oriented caps are delivered steadily to the UV-printing station. The bigvolume bin cuts down frequent material refilling. Its gentle transport structure avoids collision scratches on thin, soft and easily abraded plastic caps. Low noise running and stable high speed feeding keep your whole production line operation smooth.

2. High-Speed Adjustable Definition Printing System

This automatic full color UV digital inkjet printer for bottle caps is custom designed for curved surface color printing on plastic caps, aluminum anti theft closures and bottle bodies. It delivers a maximum printing speed of 120 meters per minute with adjustable print resolution from 300 to 2400 DPI. Eco-friendly RoHS compliant UV ink safe for food contact application is adopted. Equipped with high precision piezoelectric printheads, it can print variable QR-codes, batch serial numbers, anticounterfeit codes, brand logos and full-color graphics. Standard configurations consist of plasma activation pretreatment, instant drying with LED-UV cold light curing, OCR visual inspection and automatic defective product removal. The ink boasts outstanding adhesion and excellent scratch resistance, well suited for high speed production lines in the packaging industry.


Scope of Application:

Automatic full color UV digital inkjet printer for bottle caps supports multiple type bottle caps, including plastic caps, aluminium anti-theft caps and metal caps. It adapts to curved surfaces with varied radian angles. The system auto flattens graphic files to fit arc shaped outer walls for distortion free printing. Available print contents: variable QR-codes, batch serial numbers, anti-counterfeit codes, brand logos, gradient full colour graphics, custom texts and database driven variable data.
