RFID Hangtag Digital Printer
ZFPM-ONEPASS-DP01

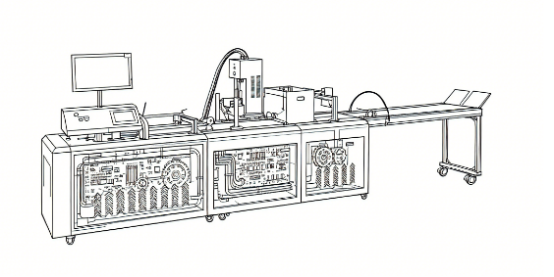

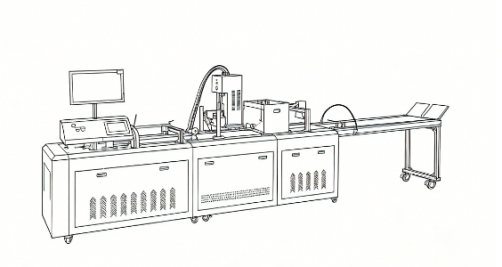

RFID Hangtag Digital Printing Machine ZFPM-ONEPASS-DP01 RFID Hang Tag Digital Printing Machine does not require plate making, nor waiting. Import the images to the computer, start the machine with one button, and it can begin printing. It is suitable for printing single RFID tags, garment tags, cards, tickets, and other individual tags. It can print on the surface of one dimensional codes, two dimensional codes, anti-counterfeiting codes, images, personalized numbers, text, running numbers, databases, and more. Simultaneously, it features reading and writing detection, scrap automatic rejection, and automatic code compensation among its functions. Additionally, it is equipped with intelligent collecting and feeding. Pagination reduces the tedious process of manual feeding, improves work efficiency, and makes the printing work faster and more efficient. Through the synergistic operation of auto-feeding and autocounting stacking, it can effectively reduce manual operation time and labor costs, enhance production efficiency, and save on costs.

获取报价

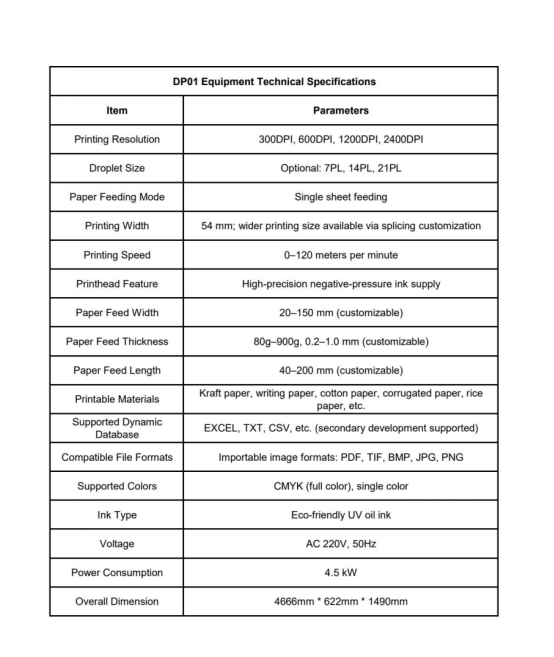

Detailed Product Specifications：

Product Features:

1. Vacuum Belt Feeder

Intelligent Auto-Feeding & Receiving System.he sheet separating feeding mechanism eliminates tedious manual sheet loading procedures to boost workflow efficiency and accelerate your printing tasks. Combined operation of automatic feeding, counting, stacking and bundling effectively cuts down manual handling time and labour expenditure, raises production capacity and reduces overall costs.

2. RFID System

Once sheet feeding finishes, the system automatically detects single sheet status of tags. Individual hang tags are then conveyed to four RFID read write modules, which sequentially execute chip reading, data writing, encryption and inspection. Defective RFID tags will be automatically rejected during detection to prevent faulty items from flowing into the subsequent working procedure.


Scope of Application:

This machine works with single sheet RFID hang tags, apparel tags, cards, tickets and other flat label stock. It is capable of UV printing 1D-barcodes, QR-codes, anti-counterfeit marks, graphics, customized digits, texts, serial numbers and database driven variable data. Built in functions cover RFID read write inspection, automatic defective tag rejection and auto-reprinting for missing codes.
